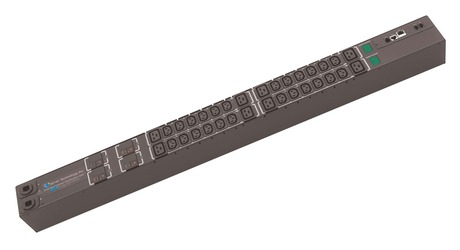

Server Tech Switched CW-32VDEKA15A1 with PIPS™

                              Enlarge Image

  • 32 Outlets: (24) C13 & (8) C19
  • 2 Plugs: (2) IEC Blue 2P+G Plugs
  • 230V, 32AMP
  • Remote Outlet Switching (on/off/reboot)
  • PIPS™ (Per Input Power Sensing)
  • Temperature & Humidity Monitoring
        CW-32VDEKA15A1 Data Sheet

                  Request A Quote
This Server Tech Rack PDU (Power Distribution Unit), also known as a CDU® (Cabinet Distribution Unit), is a Switched Rackmount PDU with PIPS™ (Per Inlet Power Sensing).

Switched Rack PDUs provide remote power control to each outlet or a group of outlets, which means outlets can be locked down to prevent unauthorized use or connected devices can be rebooted remotely. Additionaly, the Server Tech Switched CDU with PIPS will also monitor the power infeed/inlet to the PDU to monitor Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Reactance, Accumulated Energy (kWh), and Power Factor per Inlet.

Blade servers and high density computing power requirements continue to increase within the Data Center, creating heat proliferation and more challenges for managing the IT environment. To maintain their competitive advantage, data center managers need solutions such as Sentry Smart POPS (Per Outlet Power Sensing) units that monitor, track and manage servers and IT equipment and the equipment cabinet infrastructure that houses them.

Sentry Switched Rack PDUS have all the features and functions of an Intelligent Cabinet PDU with the ability to provide power control per an individual outlet/device. This combined with the Server Tech SPM (Sentry Power Manager) appliance creates a powerful combination allowing managers to accuratley determine power consumption, environmentals, and uptime status at various levels throughout the data center.


Using grouping technology, remote power control is available per device, groups of devices (application), individual Cabinet PDU or cabinet.

PIPS Family Brochure
